Features
- Molded high-impact ABS enclosures
– Available color options
– Small size and ready-to-paint exterior
– Adjustable ceiling/wall mount
– “T” versions equipped with factory-installed multi-tap transformers

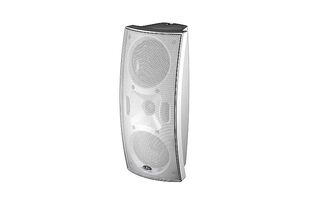

The Arco 24T incorporates two 4” woofers with weather resistant polypropylene cones. High frequency reproduction is handled by a 25 mm neodymium dome tweeter for brilliant highs and balanced performance. An Overload Safety Circuit protects the speakers from damage in case of overpowering. The “T” versions include a multi-tap transformer with 10-20-30 W settings.
IP-54 versions for outdoor use are available.
Technical Data
RMS Power Handling: 30 W
Frequency Range (-10 dB): 65 Hz-22 kHz
On-axis Sensitivity 1W/1m: 89 dB SPL
Rated Peak SPL at 1 m: 115 dB
Transformer Taps:
30/20/10 W (100 V)
15/10/5 (70 V)
Dispersion: 80ºH x 70ºV
Enclosure Material: Paintable ABS Plastic
Color/Finish: White
Connectors: Spring-Loaded Terminals
Dimensions (H x W x D): 340 x 150 x 150 mm
Weight: 2.6 kg
