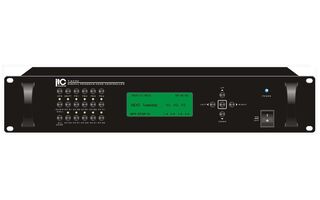

ITC Audio T-6232

199 295 тг.
Артикул: 18831
Наличие: Ограниченное количество
10 Zone Weekly Timer with Mp3 Program Player
Производитель: ITC Audio

Features

* Built-in weekly timer, monitor, 10 zone speaker selector, 6 channel power sequencer and Mp3 player
* Expandable from 10 zones to 160 zones
* Single Scheduled background music + 160 zone paging + multi voice alarm system
* Single scheduled background music from T-6232 weekly timer's built-in MP3 player
* 3 modes of voice alarm: all zones, separate zone and neighboring zones voice alarm
* Remote paging console up to 16 units
* 5 amp inputs divided into 10 zones speaker output
* Timely broadcast up to 99 program sources
* Broadcast modes: random, repeat and circle
* 4 regular programs and 1 spare program for emergency/particular circumstance
* Functional swift key for internal MP3 player priority manual broadcast
* Zone1-10 selector, all zone selector, music/paging swtich, MP3 swift button, swift program button, power control channel 1-4 buttons, up/down/left/right/ok buttons
* External power control, external monitor, speaker fault detection and amplifier fault changeover all are optional could be added
* Power handling 5000W over each 10 zones
* System communication is through CAT 5 cable
* The system communication distance up to 1kms
* Memory function even in case of power off

Optional

* Panel with/without handhold

Specifications

Model:    T-6232
Power Output:    ~110V/60Hz or ~230V/50Hz
4 Program Power+2 AUX power;     Total Power:     5KW
Function Button:     Light touch press buttons include 4 power switch buttons, 1 MP3 control button, 1 backup program switch, 10 zones speaker selector button, all zones button,
1 music or paging switch button; 4 menu buttons for switch, 1 ok button
Indication Method:    192x64 LCD display, English
Audio Output:    1KΩ 0.775V Unbalance(6.35 RC)
        0V(Short Circuit) Industrial Standard
Voltage Input and Output of Alarm Integrated Terminal Block:    0V(Short Circuit) Industrial Standard
Voltage Output for Power Control Integrated Terminal Block:    CHA CHB CHC CHD CHE
                            CHA1-A2 CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2
Amplifier Input and Output:    0.5W
Monitor Power of Speaker:    −∞~0dB
Monitor Volume Attenuator
Time Mode:    24 hours(hour-minutes-seconds) weekly
        Total 5pcs(4 normal programs, 1EMC)
Program Quantity:    Total 512 Steps
Program Steps:     1 day 200 Steps
Communication Protocols:    RS422
Communication Port:    RJ45
Communication Speed:     4800bps
160 zone(16pcs T-6217 10 zone speaker seletor)
MP3 Frequency Response:    20Hz~20KHz/ 1dB
Mp3 Store Format:    Compatible FAT12, FAT16, FAT32
Power Supply:    ~110V/60Hz or ~230V/50Hz
Dimensions:    484 x 303 x 88 mm
Weight:    6.8Kg
